Open Source
German Cyber Bike
Tutorial
This is an open source concept and anyone is welcome to try!!!
https://creativecommons.org/licenses/by/4.0/
You are free to:
Share — copy and redistribute the material in any medium or format
Adapt — remix, transform, and build upon the material
for any purpose, even commercially as long as you do not apply legal terms
or technological measures that legally restrict others
from doing anything the license permits (especially restrict other
to use the original design as shown in this tutorial).
Industrialization — You are allowed to modify or improve the design and
patent it according to your modified or improved design. You may manufacture
and sell your products according to the patented design.
Human right is a basic right – but please don’t forget !!!
that you also have right to get rich and become millionaire !!!
Stop playing victims and start building stuffs by yourself !!!
Only rich people can buy the bikes as shown below !!!
Or the people with rich parent !!!
We give you an alternative if you are poor like us !!!
Germany is a land of opportunities and prosperity
as long and you don’t sit down and wait for miracle to happen
We need empirical data, not opinion !!!
Do not hesitate to contact me if you have any difficulties to build it by yourself at home
check our other open source tutorials here:
http://www.young-dynamics.com/Bremen-Dynamics/Tutorials/Free_Energy.html
Designed and shared by refugees/immigrants
Check our YouTube: https://youtu.be/UNCLZ9TKBAo
German Cyber Bike
By placing the battery on the front, it increases stability also allow you
to charge the battery at home while leaving the bike outside
By adding tension springs on both side
it increases stability while turning left or right
Basil Fahrradkorb hinten Icon M Schwarz 1 x 37,95 Euros
Step 1: Preparing the seats
WOLTU BH29ws-1 1 x Esszimmerstuhl 1 Stück Esszimmerstuhl Design Stuhl Küchenstuhl Holz Weiß : Amazon.de: Küche, Haushalt & Wohnen
Coating the wood with melted candle wax
to keep the wood water proof
Mounting the seats on the platform

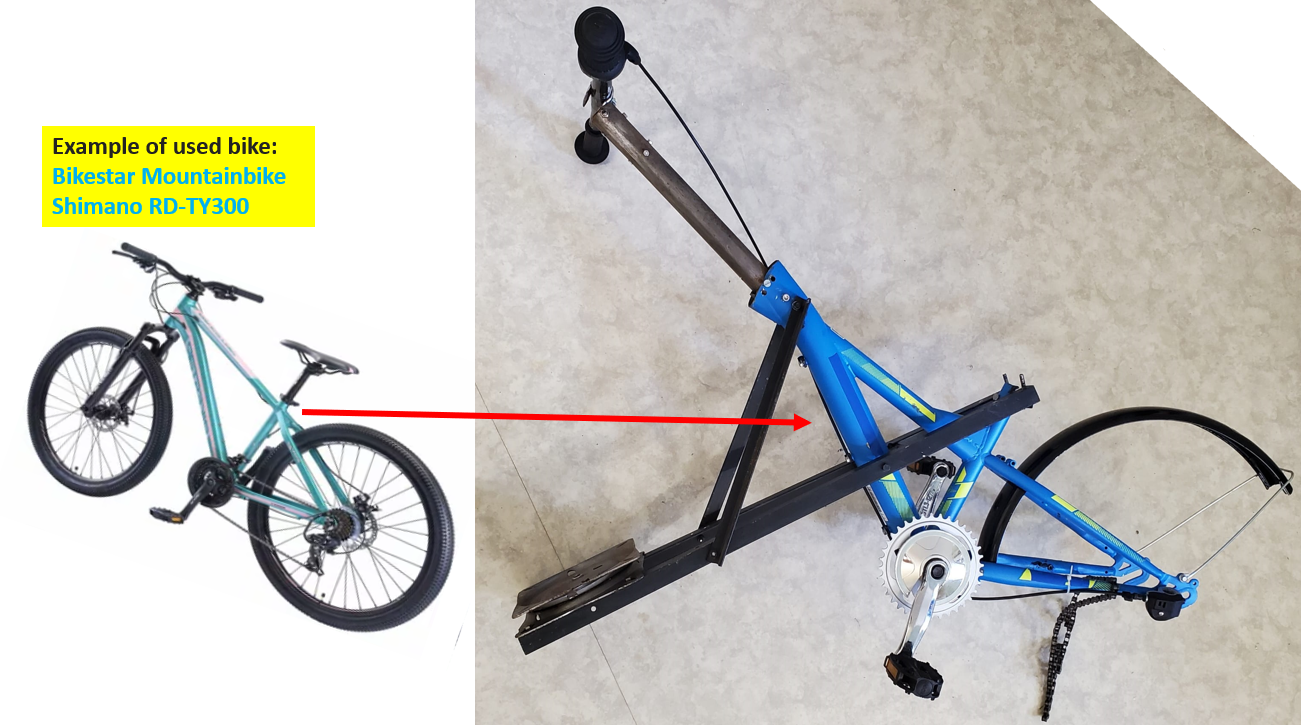

Step 2: Preparing the frames from junk mountain bike
Drehkranz Schwerlast-Drehbeschlag 360° kugelgelagert Drehteller zum Schrauben | Stahl blank | Druck-Kugellager 225 kg | Schwenkauszug mit Drehplatte | 1 Stück - Drehbeschlag für Möbel & Schränke : Amazon.de: Baumarkt
Step 3: Preparing the front wheel from junk bike

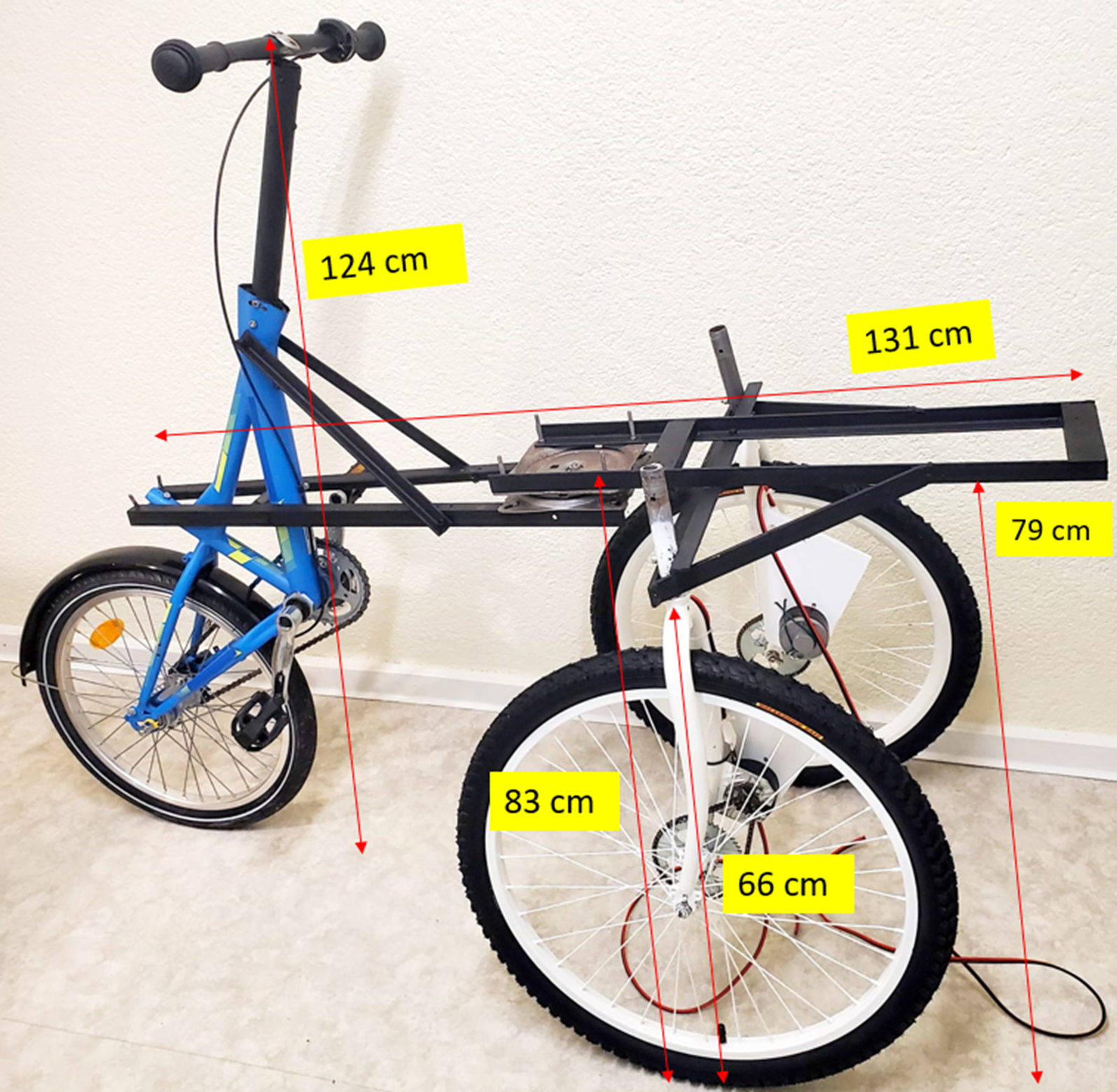

Step 4: Preparing the main frames
Winkelstahl Winkelprofil Stahl L-Profil gleichschenklig Länge 1500mm 30x30x3mm rundkantig : Amazon.de: Gewerbe, Industrie & Wissenschaft

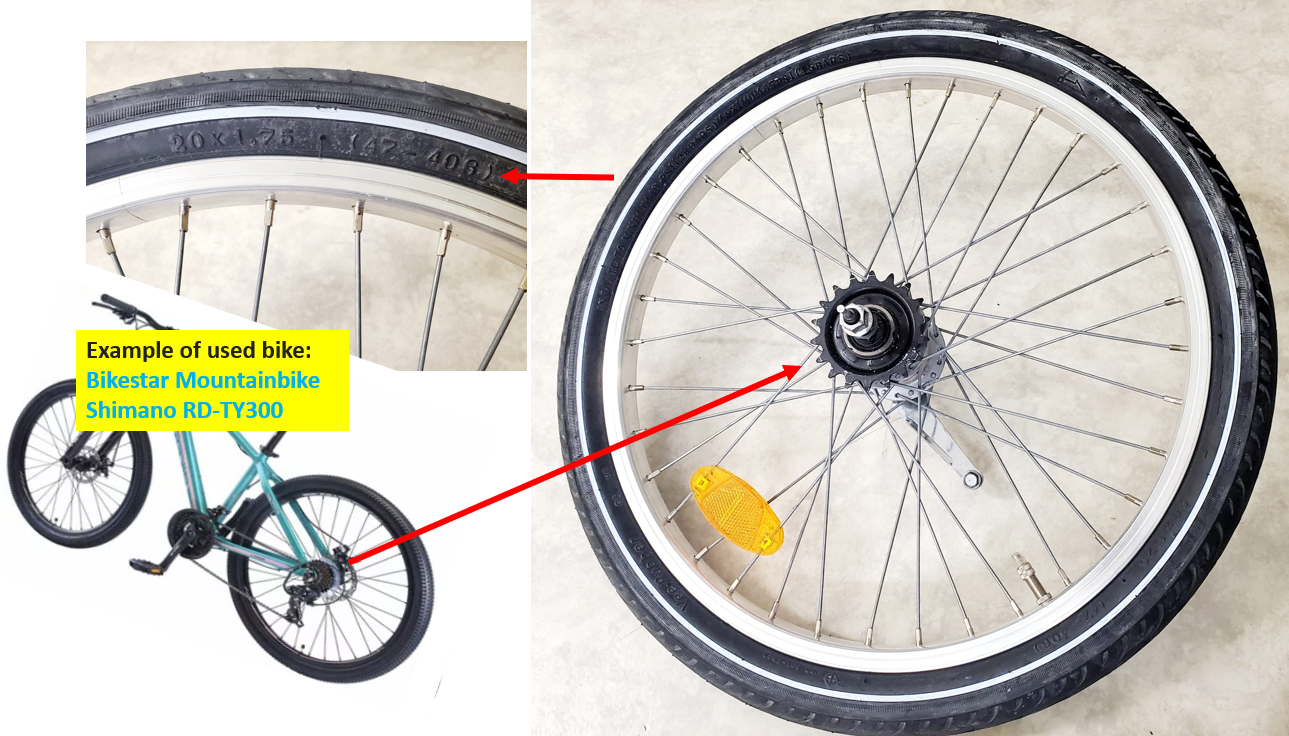

Step 5: Preparing the back wheels
2 x 37,35 Euros = 74,70 Euros
2 x 12,95 Euros = 25,80 Euros
2 x 8,95 Euros = 17,80 Euros
1 x 17,95 Euros
1 x 13,95 Euros
1 x 12,50 Euros
1 x 8,29 Euros
Step 6: Preparing the platform
2 x 12,90 Euros = 25,80 Euros
Apply melted candle wax to keep the holes and cut water proof
2 x 8,99 Euros = 18 Euros
Connector to the solar cell/charger 12V-19V
Preparing the blinker holder
Mounting the blinker
Mounting the LED strip
Cover the led strip and outer surfaces with white sticker to
keeping the led strip water proof
Step 7: Preparing the electrical circuit
Lautsprecherkabel 2x4,00mm2 - 10m - rot-schwarz - CCA - Audiokabel - Boxenkabel: Amazon.de: Elektronik & Foto
Solarladeregler, MPPT 40/50/60/100A Solarbatterieladegerät Laderegler Panel Controller Zwei USB-LCD-Display 12V 24V Für Solarmodule(50A) : Amazon.de: Gewerbe, Industrie & Wissenschaft
HeyVolt Asia Autobatterie 12V 45Ah 390A/EN Starterbatterie, absolut wartungsfrei, Pluspol Rechts : Amazon.de: Auto & Motorrad
RUIZHI DC Motor Controller, DC 9-50 V 40 A DC Motor Drehzahlregelung Reversible PWM Controller 12 V 24 V 36 V 48 V 2000 W Vorwärts-Rückwärts-Schalter : Amazon.de: Gewerbe, Industrie & Wissenschaft
https://www.amazon.de/dp/B0823P6PW6/ref=syn_sd_onsite_desktop_0?ie=UTF8&psc=1&pd_rd_plhdr=t
Leitungsschutzschalter 3 Polig 16A 400V AC Sicherungsautomat Schutzschalter : Amazon.de: Baumarkt
EnRise 12V/24V Batterie Polklemmen Batterieklemmen Steckverbinder mit Flügelmutter(1 Paar) : Amazon.de: Auto & Motorrad
Hoteril LED Strip 6M (2x3M), LED Streifen Warmweiß 180LEDs 5V USB, Plug&Play, LED Band für Beleuchtung, Küche, Schrank, Schlafzimmer, Haus, Party Weihnachten Deko, usw. : Amazon.de: Beleuchtung

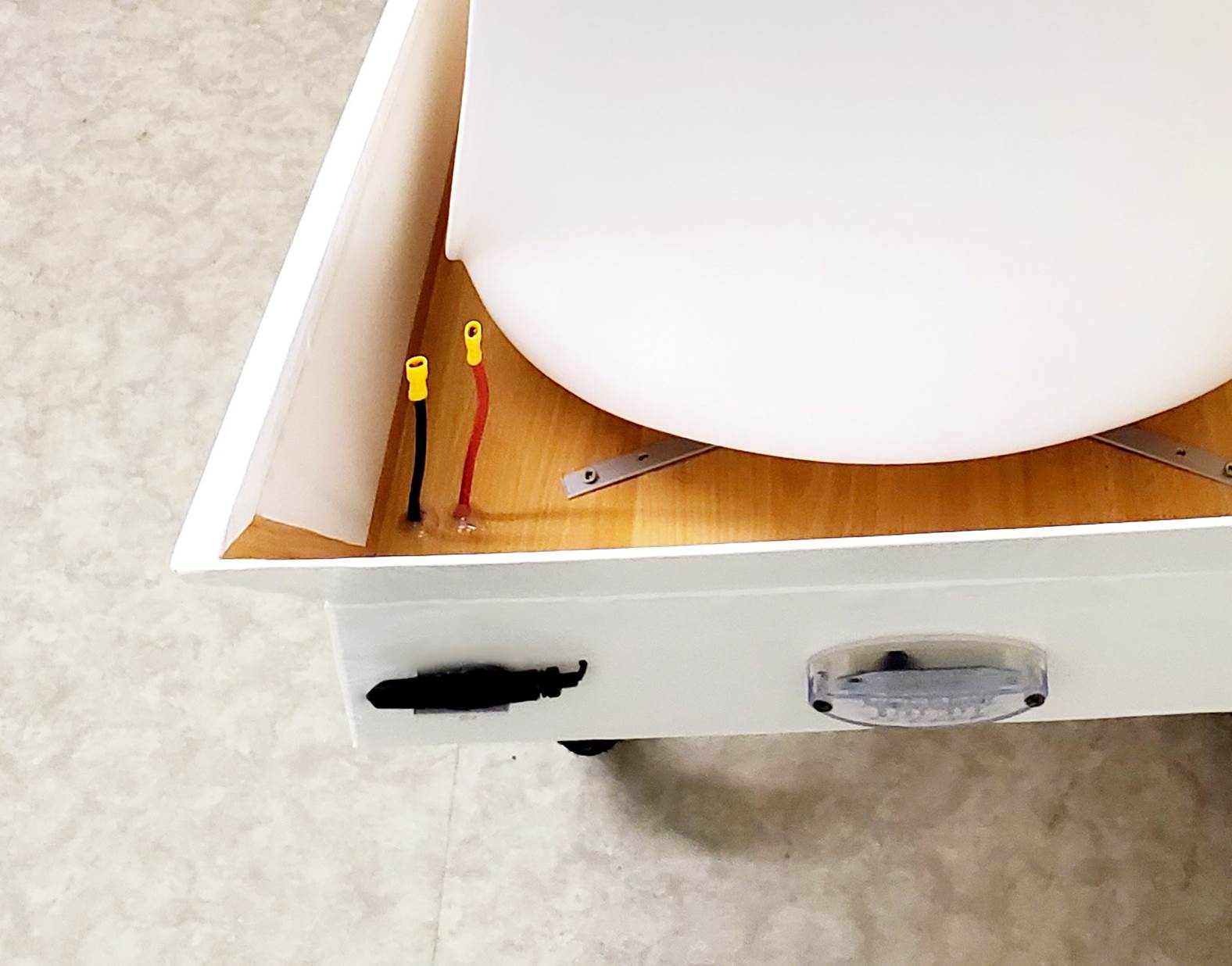

The solar cell/charger connector on the platform 12V-19V
Keenso Motorrad Lenkerschalter, 1 Paar 7/8 Zoll Motorrad Lenker Scheinwerferschalter Horn Schalter Zündschloss Motorrad Lichtschalter : Amazon.de: Auto & Motorrad
BeiLan 2Pcs Zusatzscheinwerfer Motorrad LED,Scheinwerfer Motorrad,Nebelscheinwerfer Motorrad Schwarz,LED Arbeitsscheinwerfer,Spotlicht Lampe 12V 24V 20W 1800LM Cree 6500K : Amazon.de: Auto & Motorrad
Evomosa 28 Led Motorrad ATV Heckbremse Stop Kennzeichenbeleuchtung kompatibel mit ATV LTZ König Quad Runner DR DRZ 650 400 (Weiß) : Amazon.de: Auto & Motorrad
Simda Pro E Mark Led Motorrad Laufeffekt Blinker Lauflicht Sequentiell Schwarz Universal Quad ATV Lauflichtblinker Super Optik und Schön Hell Wasserprüf IP67 E Prüfzeichen : Amazon.de: Auto & Motorrad
Mounting the battery below the platform
Adding stabilizers
2 x 2,35 Euros = 4,70 Euros, stabilizer spring
https://www.bauhaus.info/federn/stabilit-zugfeder/p/10772194
Adding battery holder if you want to charge the battery at home
While leaving the bike in the basement like me
Charging the battery at home
This is the charger I am using
Put it back and place the cover to protect from rain
